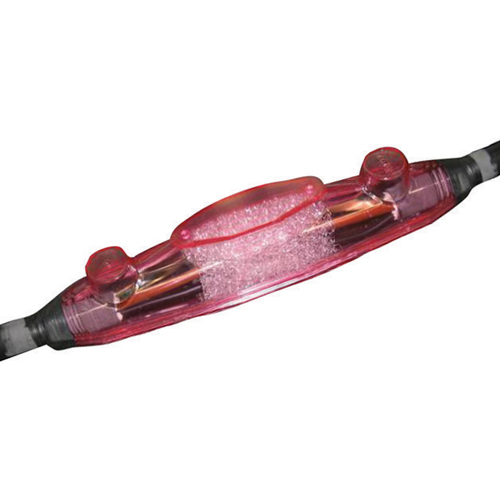

Image for 3M Scotch Hazardous Area Pilot Cable Joints
For up to date technical data please get in touch
+44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

3M Scotch Hazardous Area Pilot Cable Joints

Print this page
All Products

3M Scotchcast Hazardous Area pilot joint kits include flame-retardant, hydrocarbon-resistant, halogen-free 1402F-R resin packs.

The resin joints are designed for use with both multi-pair or multi-core SWA armoured control and instrumentation cables. This new product features a unique hinged mould body and totally enclosed resin mixing system, suitable for use in areas of high soil contamination and ATEX-rated Hazardous Areas.

The LV3/-IC Hazardous Area joint replace the former LR-range and is designed for use with both compression splices or insulation displacement connectors (IDCs), which are supplied as separate items.

  • High-performance 2-part polyurethane 1402F-R Hazardous Area resin system.
  • Suitable for use with SWA armoured cables.
  • Transparent flame retardant mould bodys.

      • Each resin pilot joint kit order reference includes: Two-part transparent mould, 1402FR resin pack/s, armour continuity stocking, constant force springs, Scotch T2319 self-amalgamating tape and joint installation instructions.

Add to quote
SKU: LVI-3 IC Categories: , , , , , , ,

3M resin filled control and instrumentation straight joint kits for ATEX rated Hazardous Areas.

Order Reference Product Name Maximum Cable Sizes Qty Add to quote
LVI-3/2-IC
0.9mm2 2pair
Add
LVI-3/3-IC
0.9mm2 5pair
Add
LVI-3/4-IC
0.9mm2 10pair
Add
LVI-3/5-IC
0.9mm2 20pair
Add
LVI-3/6-IC
0.9mm2 50pair
Add
Can’t find what you’re looking for? Contact ETS on +44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

Due to manufacturer design changes, some of the selection charts and other technical information published may change at short notice.

For the most current product technical data sheets, please contact us on 00 44 (0)20 8405 6789 or via sales@etscablecomponents.com
