51.0mm Bore Heat Shrink Sleeving Zero Halogen
Heat-shrinkable, 51.0mm bore, thin-wall sleeving suitable for colour-coding, phase identification or additional insulation on Low Voltage (LV) power cables up to 1000v AC. Manufactured from commercial-grade LSF Zero Halogen (LSZH), flame-retardant, self-extinguishing polyolefin.
This highly flexible, heatshrink sleeving has a continuous temperature limit between -55oC to +125o and a dielectric strength of >20kV per mm. The sleeves have a shrinking temperature of 135oC.
- Suggested conductor size: 240-630mm2 (over primary insulation)
- Expanded diameter: 51.0mm
- Recovered (shrunk) diameter: 25.4mm

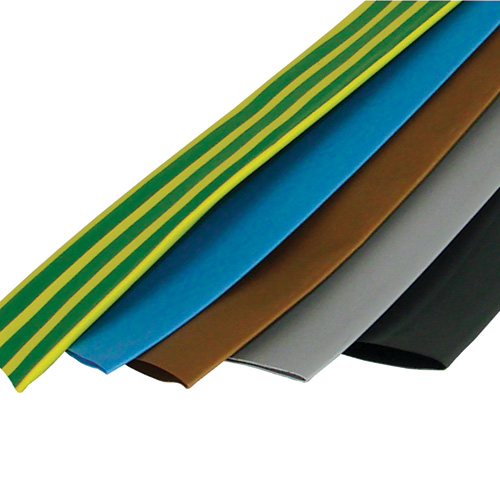

- Colours available from stock: Blue, Black, Brown, Grey and Green/Yellow stripe
- Colours available to order: Red, White, Green, Orange, Clear and Violet. Subject to MOQ of 30 metres
Standard LSF heat shrink tubing colours are sold by the metre or in 30 metres roll lengths.
51mm thin-wall, low smoke zero halogen (LSZH) heat shrink sleeve. Sold in 1m lengths.
