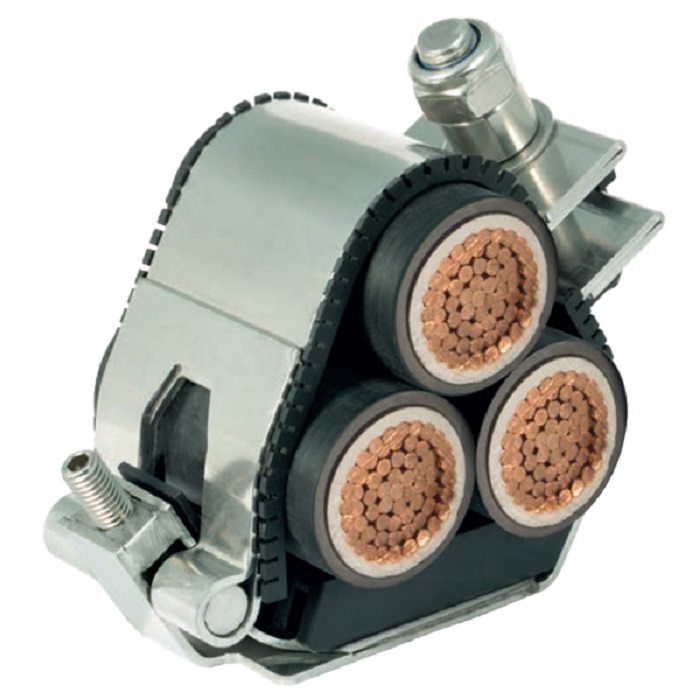

CMP Conqueror Cable Cleat
Conqueror has been designed to suit a wide cable range take, allowing one cleat to fit a much broader range of cable sizes than a conventional fixed hinge cable cleat.
A common problem when ordering cable is that the actual outer cable diameter may vary from the nominal size by as much as 5%. If the cable diameter is at the upper or lower limit of a fixed hinge cable cleats range, this could result in the cleat being either too small or too large to properly restrain the cables
The Conqueror can easily cope with these size fluctuations, reducing the need for multiple cleat sizes to safely clamp the cables. The simple and easy-to-use adjustable hinge of the conqueror cable cleat allows each of the 16 sizes to provide a cable range take of 9mm, almost twice that of other fixed hinge cable cleats.
The Conqueror cable cleats are metallic cable cleats designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ IEC 61914. The Conqueror cable cleat has been designed to restrain a large cable range take, and tested for exceptionally high short circuit conditions on cables held in trefoil application / formation, to ensure the securing and retention of cables without damage.
Conqueror is unique with its patent pending adjustable hinge. The movement of this hinge virtually doubles the range take adjustment when compared to other fixed hinged products on the market. Conqueror covers a range of cable diameters from 19mm up to 130mm in only 15 sizes.
The cable cleat is fabricated from 316L stainless steel, giving it high creep strength whilst providing excellent corrosion resistance in the harshest of environments.
The Conqueror cable cleat has one M12 and two M10 fixing clearance holes within its base, allowing versatility to the installer during installation, and is designed to enable the product to be secured to a variety of mounting surfaces.
The cable cleat hinge opens fully, allowing the cables to be easily placed within the cable cleat, to aid the installer before closing and securing via the mouthpiece bolt.
The Conqueror cable cleats come with a liner as standard which help to restrain the cable(s) within vertical applications. The liner also provides a layer of protection between the cable sheath and the cable cleat during normal operation, where thermal elongation of cables occurs.
This additional layer protects the cable from chafing on any mounting surface due to differential movements such as those found in marine and offshore applications.
The liners also assist in the extra protection of cable(s) in the event of short circuit fault conditions. The standard liners supplied are classified as Low Smoke & Fume (LSF), Zero Halogen (LS0H) and Phosphorus free.
FEATURES
- Third party certification to IEC 61914
- 316L stainless steel
- 23-130mm in 15 sizes for trefoil formation /application
- Short circuit rating of 170kA peak fault
- Operating temperature -50°C to +60°C
- Liners are classified as Low Smoke & Fume (LSF),
- Zero Halogen (LS0H) and Phosphorus Free
- Combined single (M12) and two bolt (M10) fixing design
