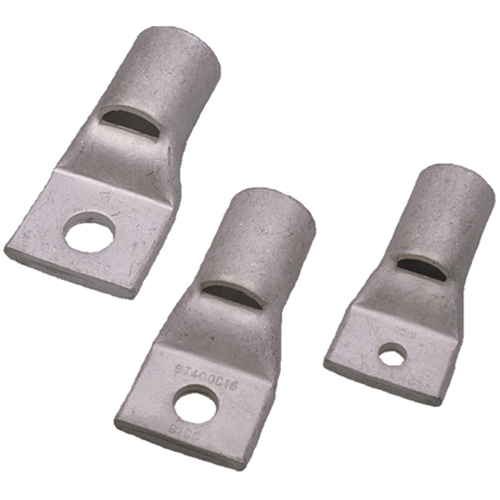

ETS Single Bolt Copper Cable Lugs

ETS single bolt copper cable lugs are designed for use with stranded copper conductors to BS6360 Class 2 for all Low Voltage (LV) applications up to 3300v (3.3kV).

Our compression lugs are manufactured from high-conductivity seamless copper tube to EN 12735 with a purity greater than 99.5% each product is designed to meet the requirements of BS4579 Part 3 when used with the appropriate die set/compression tool combination.

Conductor insertion is aided by bell-mouth entry upto 400mm² and chamfered entry from 630mm² to 1000mm² and all tinned copper terminals have a visual inspection hole to ensure correct conductor insertion prior to crimping. Standard finish is bright electro tin plated to BS1872.

The relevant hydraulic crimping tools and die sets suitable for these crimp lugs are available for purchase or hire from ETS, please contact our Sales Team for correct tool/die set requirements.
