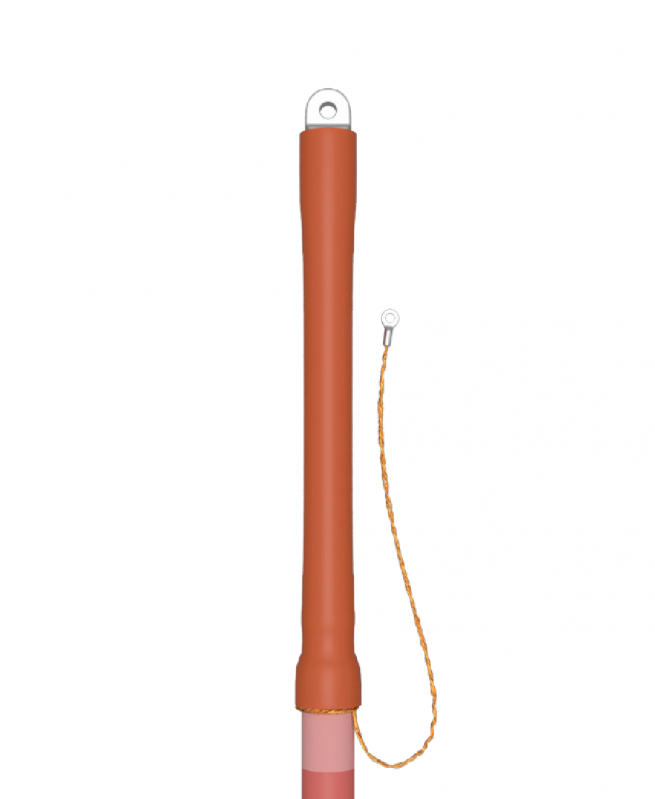

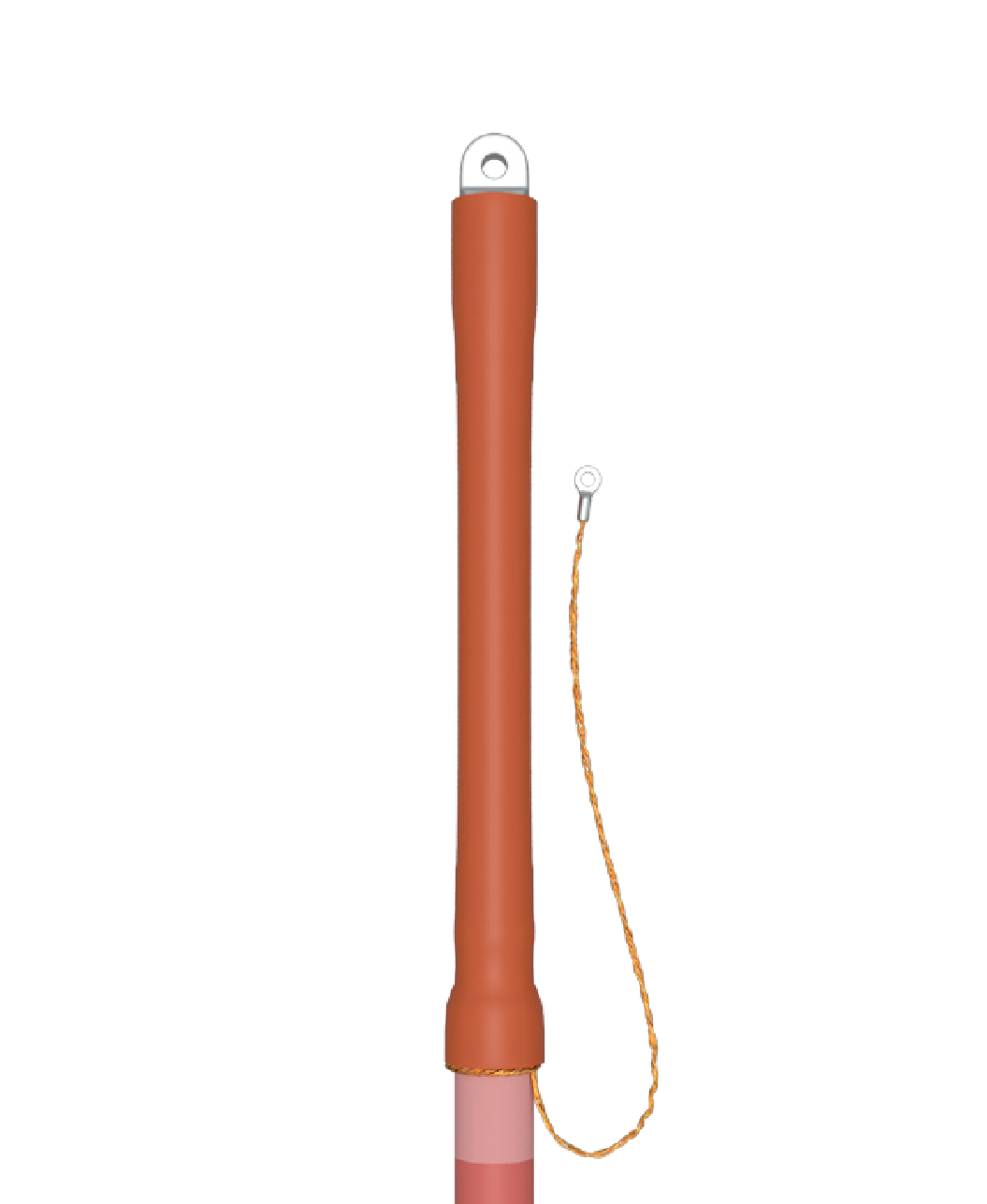

HEAT-SHRINK MV INDOOR TERMINATION FOR SINGLE CORE POLYMERIC CABLES WITH Cu WIRE SCREEN

Up to 20,8/36 (42) kV

APPLICATION

The ‘’MONOi” terminations are a single component solution, for single core polymeric cables.

TECHNICAL FEATURES

The ‘’MONOi’’ indoor terminations are designed for max system voltages of 42 kV for compact switchgears as well as for installations where space is limited.

Easy, quick to install, reducing installation time and errors.

The kit consists of a stress control mastic pad, a co extruded dual wall tube and red anti-tracking sealing mastic.

The design accommodates various conductor lugs.

MC types are supplied with “GPH” mechanical conductor lugs.

Each “MONOi” termination kit contains material to allow for 3 phase installation.

Add to quote
SKU: MONOiI Categories: , , ,
Order Reference Product Name Um kV Section range (mm²) DOI insulation (mm) DOE Outer Sheath L min (mm) Qty Add to quote
3x12MONOi1.95i
12 kV
25-95
12-20
20-34
300
Add
3x12MONOi1.240i
12 kV
70-240
16-30
24-40
300
Add
3x12MONOi1.400i
12 kV
185-400
22-36
28-48
350
Add
3x12MONOi1.630i
12 kV
400-630
26-42
36-54
350
Add
3x12MONOi1.1000i
12 kV
630-1000
34-52
42-58
400
Add
3x12MONOi1.1200i
12 kV
1000-1200
44-58
48-64
400
Add
3x24MONOi1.95i
24 kV
25-95
14-26
24-42
350
Add
3x24MONOi1.240i
24 kV
70-240
18-34
30-44
350
Add
3x24MONOi1.300i
24 kV
95-300
20-38
32-50
350
Add
3x24MONOi1.400i
24 kV
185-400
25-40
36-52
350
Add
3x24MONOi1.630i
24 kV
400-630
30-46
38-46
400
Add
3x24MONOi1.1000i
24 kV
630-1000
36-56
44-64
400
Add
3x24MONOi1.1200i
24 kV
1000-1200
46-60
52-66
450
Add
3x36MONOi1.95i
36 kV
25-95
20-32
30-44
450
Add
3x36MONOi1.240i
36 kV
70-240
22-38
36-52
450
Add
3x36MONOi1.300i
36 kV
95-300
24-42
38-54
450
Add
3x36MONOi1.400i
36 kV
185-400
28-46
42-60
450
Add
3x36MONOi1.630i
36 kV
400-630
32-52
44-66
500
Add
3x36MONOi1.1000i
36 kV
630-1000
42-60
48-70
500
Add
3x36MONOi1.1200i
36 kV
1000-1200
48-64
54-72
500
Add
3x42MONOi1.95i
42 kV
25-95
20-34
34-50
500
Add
3x42MONOi1.240i
42 kV
70-240
26-42
38-54
500
Add
3x42MONOi1.300i
42 kV
95-300
28-46
40-60
500
Add
3x42MONOi1.400i
42 kV
185-400
32-48
42-64
550
Add
3x42MONOi1.630i
42 kV
400-630
34-56
46-68
550
Add
3x42MONOi1.1000i
42 kV
630-1000
44-62
50-74
550
Add
3x42MONOi1.1200i
42 kV
1000-1200
50-66
56-76
550
Add
Can’t find what you’re looking for? Contact ETS on +44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

Due to manufacturer design changes, some of the selection charts and other technical information published may change at short notice.

For the most current product technical data sheets, please contact us on 00 44 (0)20 8405 6789 or via sales@etscablecomponents.com
