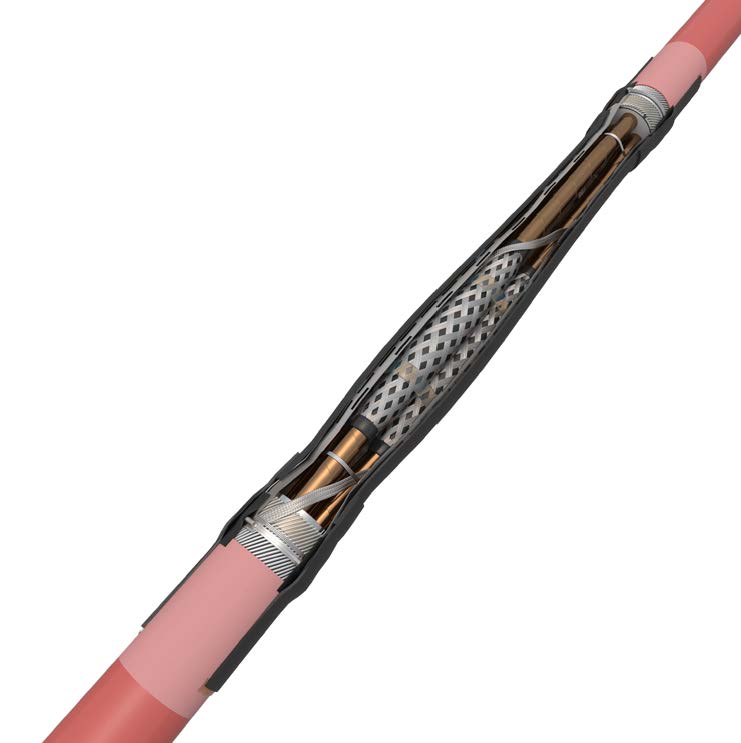

MV Heat-Shrinkable Joints 36JTS3 K – 42JTS3 K
NEXANS HEAT-SHRINKABLE MV STRAIGHT JOINTS FOR ARMOURED THREE CORE POLYMERIC CABLES WITH COPPER WIRE OR COPPER TAPE SCREEN
Up to Umax 24 kV
APPLICATION
36-42JTS3 K heat-shrinkable straight joints are designed for armoured, plastic insulated cables with Cu wire or Cu tape screen, to accommodate either crimped or mechanical connectors.
TECHNICAL CHARACTERISTICS AND DESIGN
36-42JTS is the NEW high performance, compact and easy to install joint.
Double bodies with all the electrical functions integrated!
The Nexans 36-42JTS is an integrated coextruded “stress control field + insulating” nested in a coextruded “insulating + conductive” tube, which can withstand high voltage applications up to 42kV
A double layer pad with conductive rubber inside and HK orange mastic outside ensure a Faraday cage and smooth the effect of the electrical field and of the voltage gradient in the connector area.
Screen connection and armour continuity material whether SWA, STA, DSTA
are included in the kit.
The outer sheath is restored with heavy/medium wall adhesive lined tubing.
MC types are supplied with “Nexans GPH” mechanical connectors.
