Nexans Euromold 750LR 800A 36kV U-Max Bolted Tee Connector Kit

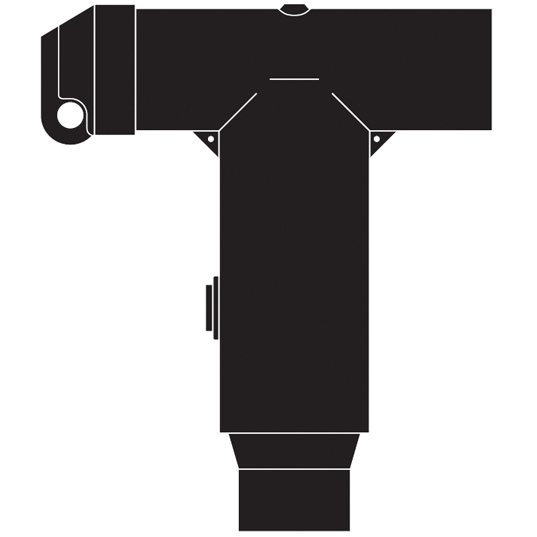

Nexans/Thomas & Betts Elastimold Dead-Break separable “Symmetrical” tee connectors are designed to connect all polymeric screened cables to 700 series, ANSI Interface Type E (800amp) equipment bushings with 5/8″UNC aluminium bolted connection. The 700 Series Elastimold Tee connector may also be used to connect cables together using the appropriate mating part and also enables multiple connections to a single bushing.

Standard Interface Type E 750LR separable connector kits are suitable for copper-wire screen cables upto 36kV U-Max. Copper-tape screen cables can be accommodated but will also require an additional screen earthing kit, type MT/SE.

• Cross-Sectional Area Range: 50-630mm²
• Core Insulation Diameter Range: 19.3-53.9mm (screen-break version)
• Maximum Voltage Rating: 36kV
• Outdoor applications: please add suffix MWS for additional water-sealing mastic
• Supplied as a single-phase connector assembly

Please provide full constructional and dimensional information for the cable/s being used to ensure compatibility of the proposed cable/connector arrangement. Full selection data can be obtained by viewing the Euromold 750LR separable connector Technical Data Sheet.

Manufacturer	Minimum Cable Size	Maximum Cable Sizes	Amperage Rating	Maximum Voltage	Elastimold	50mm2	630mm2	800A	36kV
