Nexans Mechanical PILC Earth Kits

Print this page
All Products

Nexans PILC solderless earthing connection kit suitable for use with HSGK range of heat shrink gland kits when terminating lead (Pb) sheathed PILC three-core (3core) cables.

The solderless CK earth kits allow for the earthing of the cable’s lead sheath mechanically without the need for plumbing. Also suitable for grounding OCMA-type, polymeric, lead (Pb) sheathed MV cables.

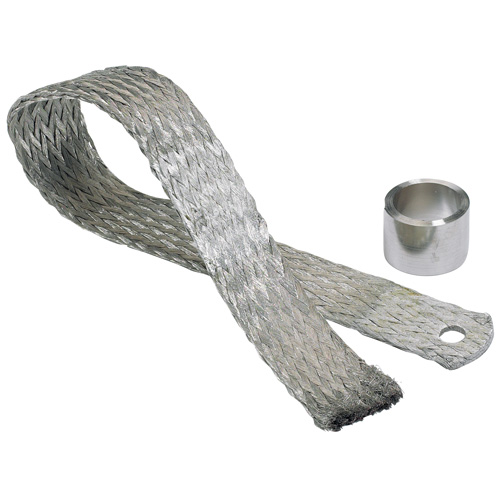

Each CK earthing kit contains a length of tinned copper braid and constant force spring, with instructions for using in conjunction with the relevant HSGK gland kit.

Add to quote
SKU: CK Categories: , , , , ,

Nexans solderless earthing kit for use with HSGK range of gland kits when terminating PILC cables.

Order Reference Product Name OD Minimum OD Maximum Minimum Cable Size Maximum Cable Sizes Qty Add to quote
CK 1
28.0mm
39.0mm
16mm2
95mm2
Add
CK 2
40.0mm
50.0mm
120mm2
185mm2
Add
CK 3
51.0mm
60.0mm
240mm2
300mm2
Add
CK 4
61.0mm
80.0mm
400mm2
500mm2
Add
Can’t find what you’re looking for? Contact ETS on +44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

Due to manufacturer design changes, some of the selection charts and other technical information published may change at short notice.

For the most current product technical data sheets, please contact us on 00 44 (0)20 8405 6789 or via sales@etscablecomponents.com
