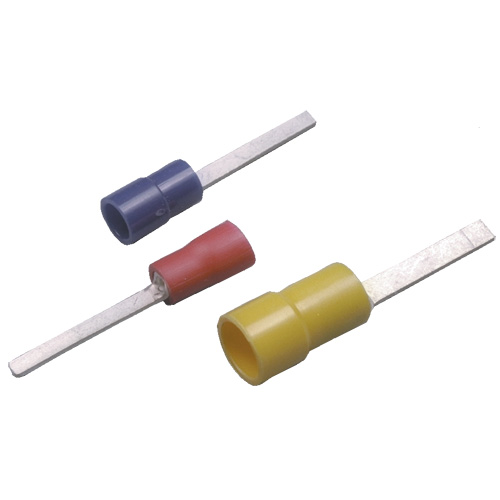

Image for Pre-Insulated Blade Terminals
For up to date technical data please get in touch
+44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

Pre-Insulated Blade Terminals

Print this page
All Products

Pre-insulated blade terminals manufactured from tinned electrolytic copper with high-grade PVC vinyl colour coded insulation suitable for conductors between 0.5-6.0mm2.

Easy-entry chamfer within the PVC insulation aids conductor insertion, crimped using any suitable commercially available compression tool. The HP3 tool is recomended.

  • Chamfered conductor entry
  • High-grade PVC insulation
  • UL approved
  • Various blade lengths available

Sold in packs of 100, please only enter whole hundreds. E.g. 5 Packets = 500 terminals.

Add to quote
SKU: BE B Categories: , ,

Colour coded pre-insulated blade terminals, sold in packs of 100.

Order Reference Product Name CSA Blade Pin Length Pack of Qty Add to quote
BER 10B
0.5-1.5mm2
10
100
Add
BER 13B
0.5-1.5mm2
13
100
Add
BER 17B
0.5-1.5mm2
17
100
Add
BEB 10B
1.5-2.5mm2
10
100
Add
BEB 17B
1.5-2.5mm2
17
100
Add
BEY 10B
4.0-6.0mm2
10
100
Add
BEY 17B
4.0-6.0mm2
17
100
Add
