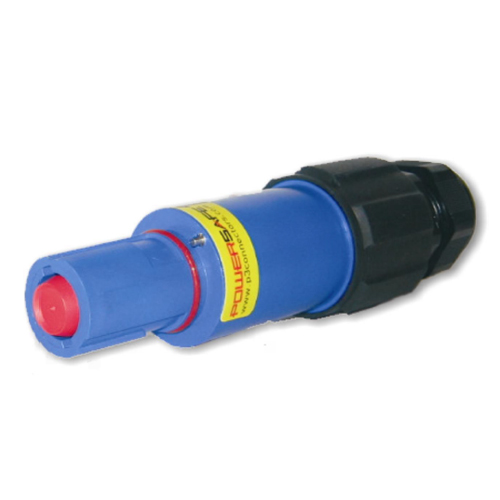

SLD Line Drain Plug Connectors – 150-300mm²

Line drain plug connectors are fitted to the line cable and mate with the Powersafe panel source sockets or Powersafe SLS line source couplers. Featuring finger-proof contacts to prevent accidental contact with live elements and supplied colour-coded and mechanically keyed to prevent connection errors.

A secondary spring-loaded pin is fitted to the SLD plug connector which engages with a slot in the SPS/SLS source connector, used to prevent accidental disconnection under load.

This version of the Powersafe SLD line drain plug connector is supplied with a size-sensitive compression contact, available in four cross-sectional areas: 150mm², 185mm², 240mm² and 300mm². Please confirm conductor size/details when ordering to ensure correct component selection.

Supplied with M40 compression gland to provide moisture seal to cable entry point. Diameter range 22-32.0mm.

EU harmonised colour coding available as standard, however also available to suit UK traditional colour-coding, USA colour-coding and Australian colour-coding.
