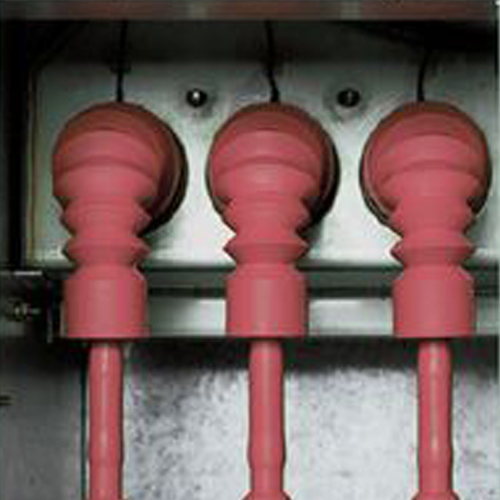

Image for TE-Connectivity Bushing Boots
For up to date technical data please get in touch
+44 (0) 20 8405 6789
or email: sales@etscablecomponents.com

TE-Connectivity Bushing Boots

Print this page
All Products

TE-Connectivity (TE Connectivity) bushing boot kits suitable for use with all TE-Connectivity heat shrink terminations. Used to increase the creepage distance between live metals (neighbouring phases) and surrounding metal-work.

  • EAKT-type heatshrink type bushing boots rated up to 17.5kV. Manufactured from anti-tracking polymer material, versions are available to suit right-angled or straight bushing connections.
  • The SMOE concertina-type universal bushing boots consist of a one-piece anti-tracking elastomeric body. Suitable for any angle between 90o and 180o, the standard product is rated upto 17.5kV.

    • All insulating bushing boot kits are supplied in sets of three phases.

Add to quote
SKU: SMOE Boot Kits Categories: , , , , ,

TE-Connectivity insulating bushing boots for upto 17.5kV applications.

Order Reference Product Name Minimum Cable Size Maximum Cable Sizes Maximum Voltage Qty Add to quote
SMOE 62803
10mm2
400mm2
33kV
Add
SMOE 62804
10mm2
400mm2
33kV
Add
EAKT 1506
50mm2
95mm2
33kV
Add
EAKT 1507
120mm2
300mm2
11kV
Add
EAKT 1508
10mm2
35mm2
11kV
Add
EAKT 1509
50mm2
95mm2
Add
EAKT 1510
120mm2
300mm2
33kV
Add
